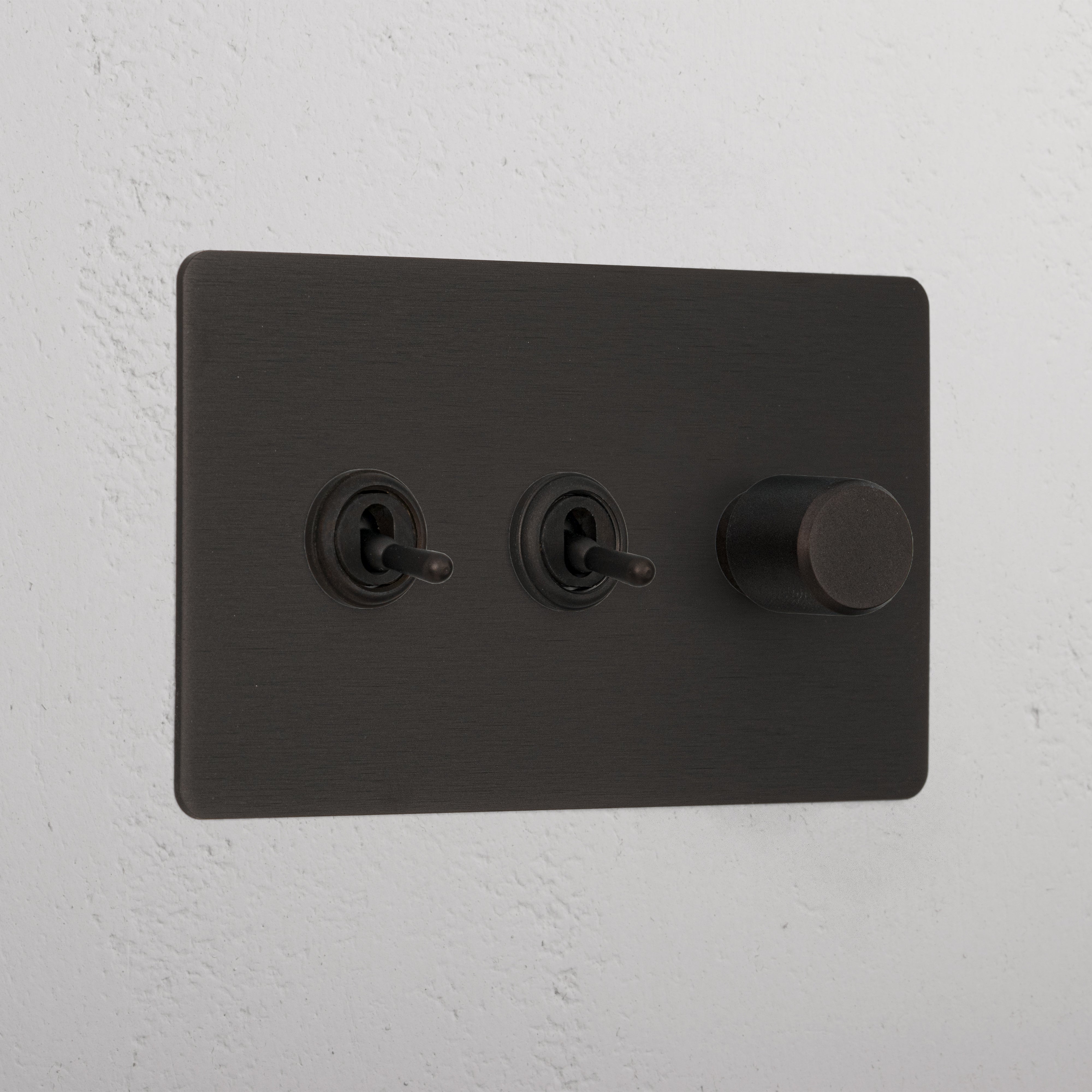

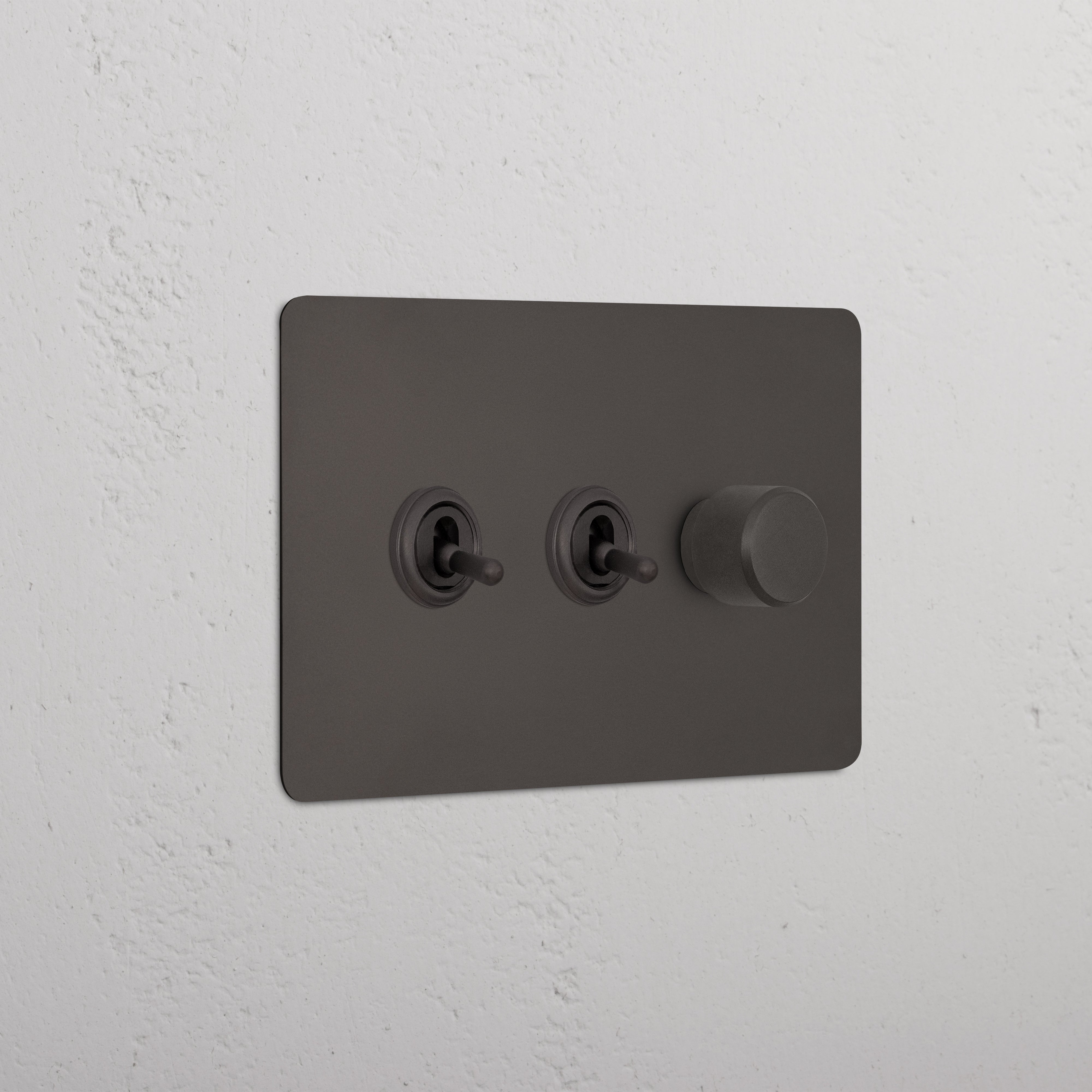

3G Mixed Switch 2T1D

Bronze 10536

£93.60

In Stock

3G Mixed Switch 2T1D

Bronze 10536

In Stock

£93.60

Use two standard toggle switches and a dimmer knob on one plate with this mixed switch design.

Powered by the latest dimmer technology, the smooth rotary style control lets you set the mood from morning to night.

The classic toggles flick from top to bottom with a satisfying click.

Bronze is our boldest finish, but it isn’t shiny or bright, so it has a subtle side to it too. It’s a deep matt brown colour that’s almost black in some lights.

  • Anti-flickering/buzzing
  • Suitable for trailing or leading edge modes
  • Made from solid brass
  • Create your own switch combinations here
  • Match with spotlights, door handles and more from the Bronze collection
  • We recommend using a 35-47mm back box with this switch

Technical Specifications +-

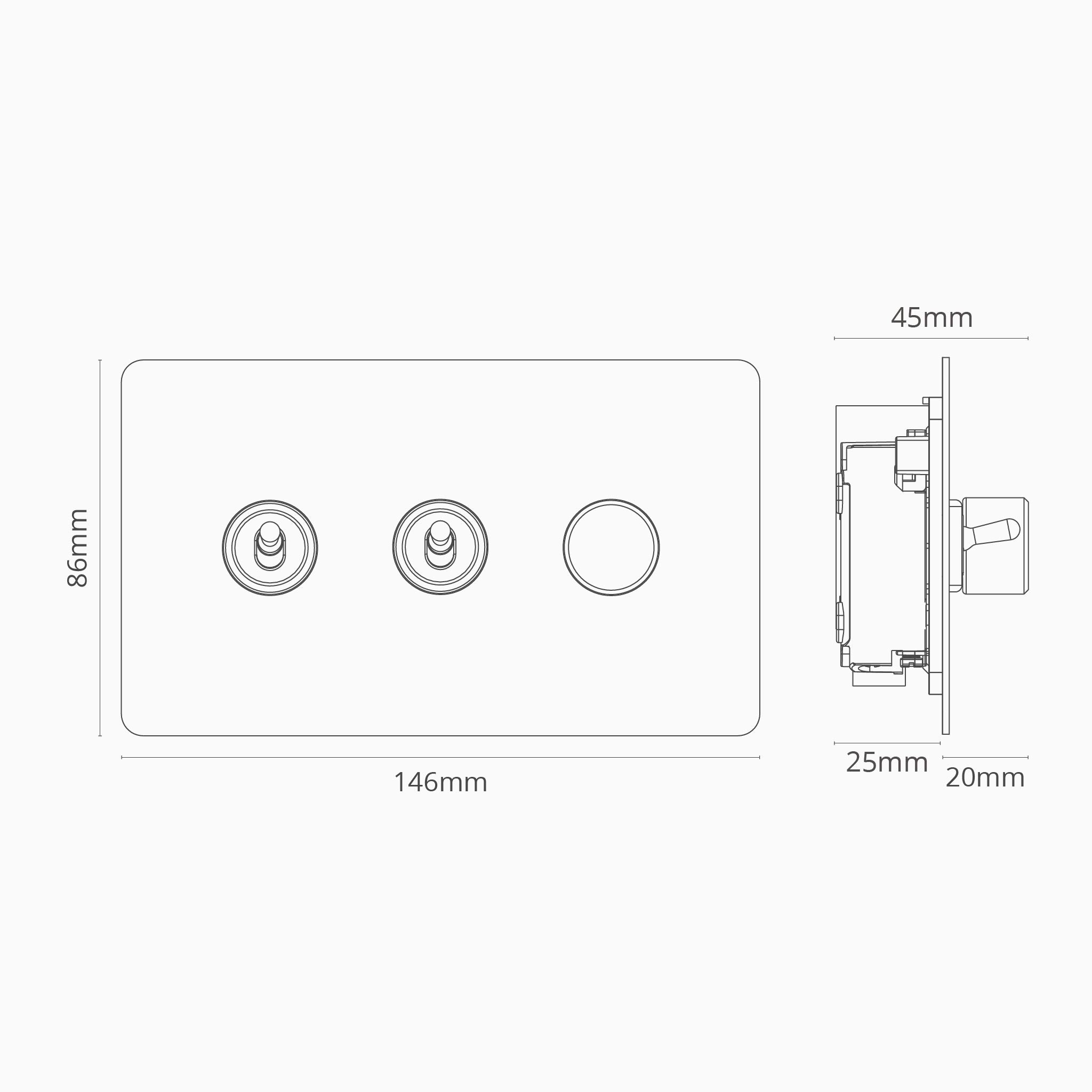

  • Dimensions; H86mm x W146mm x D45mm. Dimmer height is 20mm
  • Switches rated to 20A
  • The switch plate sits 1.5mm from the wall
  • Secured with a metal ring without visible tool marks
  • Metal die-cast chassis
  • All dimmers have built in thermal and short circuit protection
  • Minimum brightness can be set, which avoids any bulb flicker
  • Trailing or leading edge dimming control .Trailing edge is the default setting and is recommended to prolong LED life
  • Soft start operation which protects the bulbs
  • Two dimmers cannot be combined to control the same light. Use toggle switches in combination with a dimmer switch
  • Complies with BS EN 60669-1
  • 230-250V~50Hz
  • 5-150W LED's 10-350W incandescent bulbs
