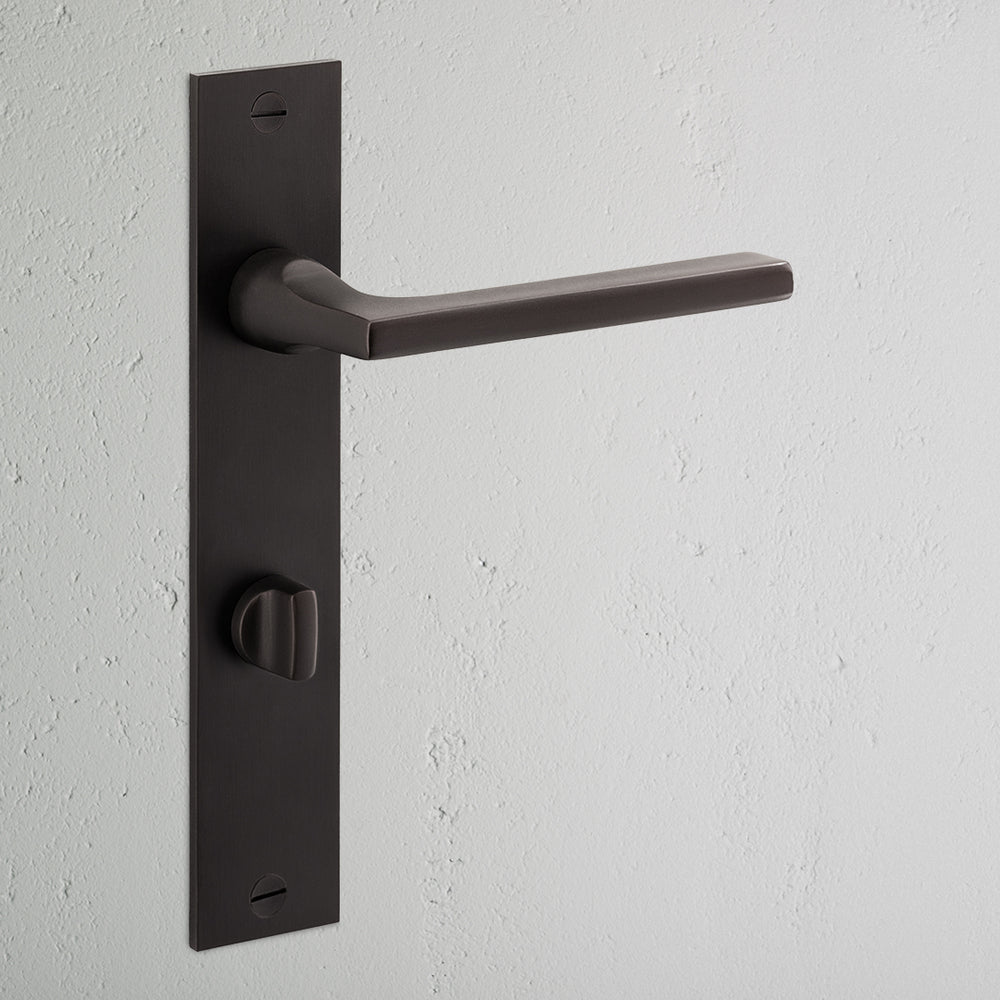

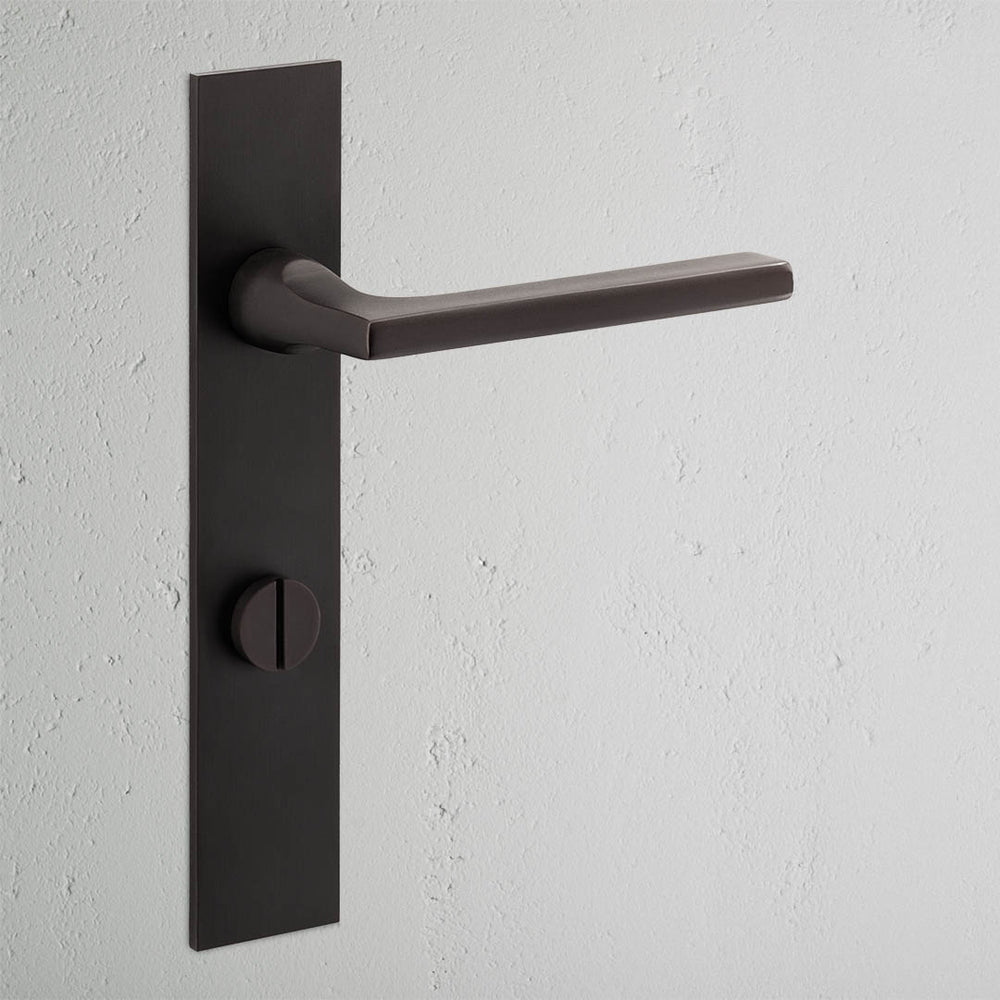

Clayton Long Plate Sprung Door Handle & Thumbturn

Bronze   13935

(No reviews yet)

£120.00

Out Of Stock Expected: 17/05/2024

Clayton is probably our most modern door handle thanks to its sleek, flat-surfaced lever (the front-facing surface still has a subtle curve to it for a really pleasing overall feel).   

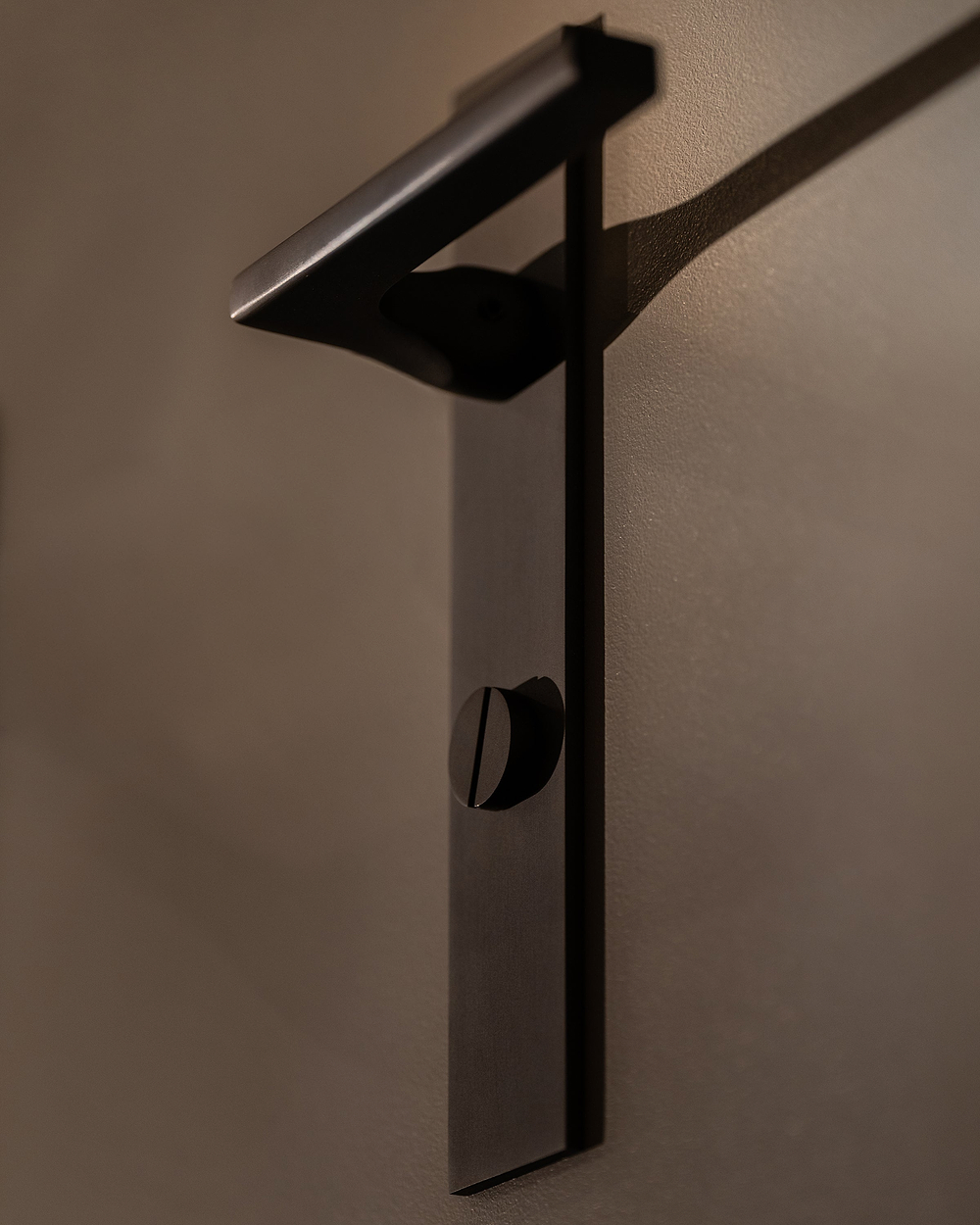

This version includes a low-profile, long backplate with a built-in thumbturn.

The handle comes with a sprung mechanism inside which is strong enough to take the weight of the solid brass and stop it sagging over time. It means you can pair it with any latch. 

There’s also no danger of it coming away in your hand – the spindle is threaded onto the handle which holds it in place. 

Bronze is our darkest finish but is warmer than plain black. Over time, the brass colour will show through in the spots you touch most.  

Technical Specifications +-

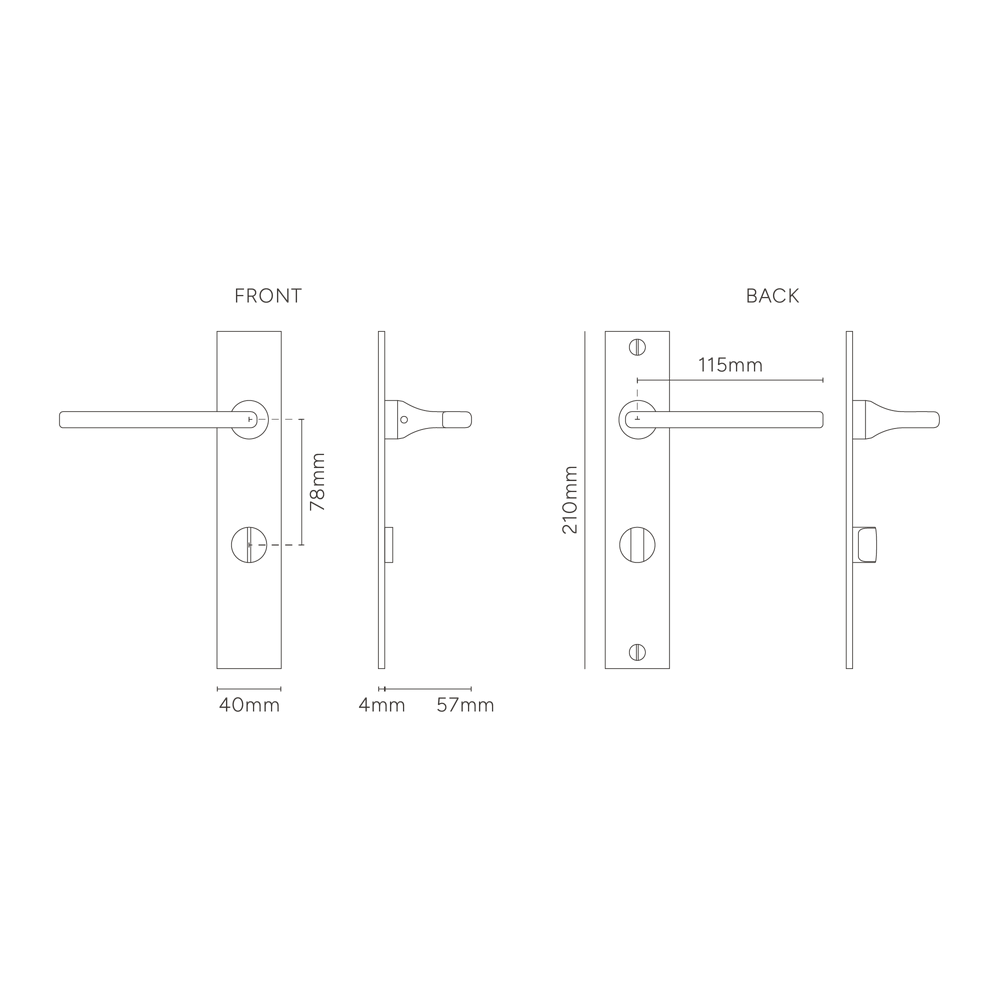

  • Dimensions: handle W110mm x H60mm; plate H210mm x W40mm x D4mm 
  • Designed for use with tubular latches and locks, or bathroom mortice locks  
  • Supplied with Corston sprung mechanism
  • Suitable for interior doors only 
  • Minimum door thickness 35mm; maximum door thickness 45mm (with supplied fixings)  
  • Accepts 8mm Corston spindle (supplied) 

Installation +-

Because our backplates are just 4mm in depth, we’ve designed the handle’s spring mechanism to recess into your door. You’ll need our 12mm template profiler router bit and flat plate routing jig to get the square pocket for the mechanism just right.

Full instructions on how to fit our door handles are online here.
